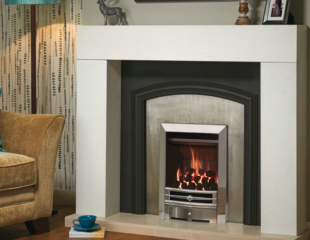

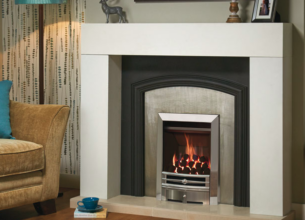

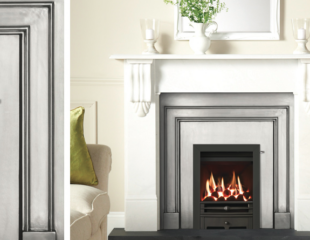

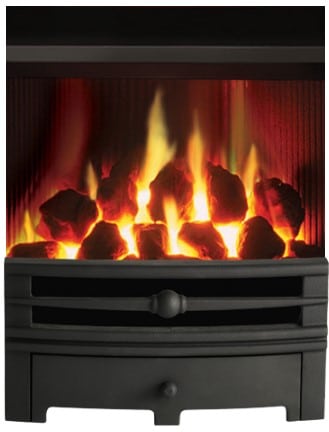

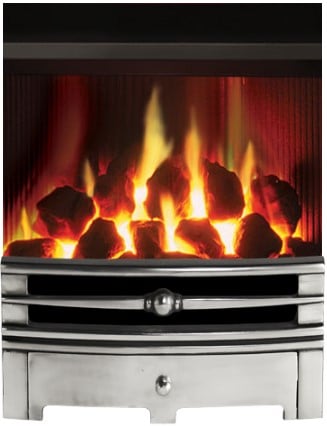

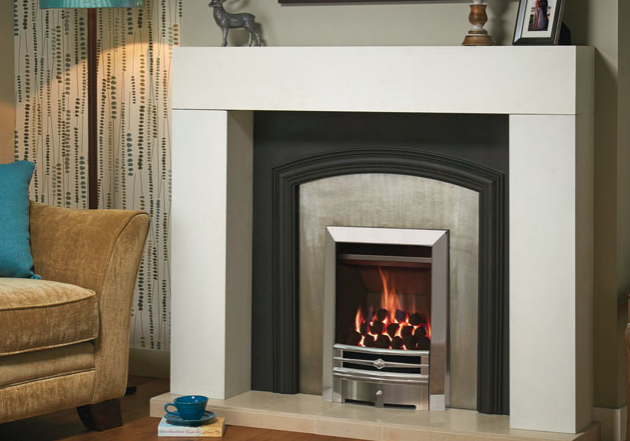

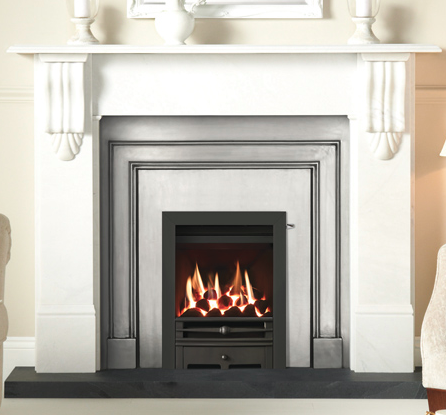

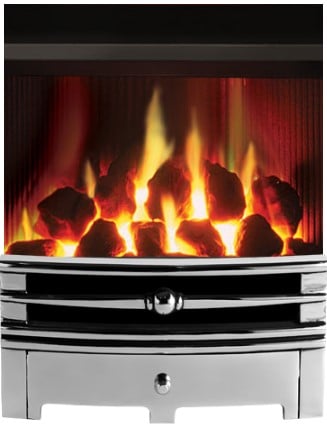

Gazco Logic Chartwell Inset Gas Fire

The classic Gazco Chartwell front is more traditional in style, bringing a touch of unassuming luxury into a room. Complemented by the choice of frame options available, the Chartwell presents yet another versatile option which is at home in any space.



Created to warm the very heart of your home, a Gazco inset gas fire brings you the reassurance of comfort and cosiness during the long winter nights; even if you don’t have a chimney!

Whether you want to obtain the latest contemporary styles or you are looking for more of a traditionally designed fire, you will find a choice of highly realistic flame effects and elegant frame options to suit your decor budget and style.



Choose Your Gas Fire

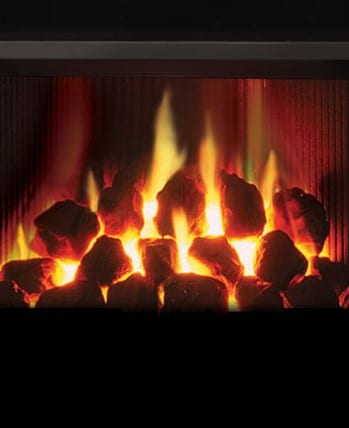

Logic Convector (coals)

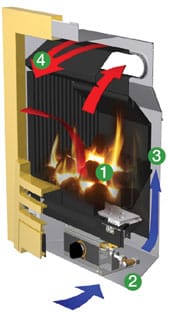

Gazco logic fire convector infogramThe Logic™ Convector is an efficient open-inset gas fire suitable for all chimney types. It incorporates a convection system that provides additional heat and efficiency to that of the Hotbox.

Available with coal or fuel beds (1) and the option of either manual or remote control versions.

The convector box draws cool room air into the bottom of the convection chamber (2) the cool air is warmed as it passes over the hot surfaces of the chamber (3) and the hot air is then emitted back into the room via the top convection slot (4).

Upgradeable Glass Bead Fuel Effects

Bead Fuel EffectFor those who want to make a real style statement, there is the option to upgrade the White Stone fuel bed on your fire to a choice of three stunning glass bead packs including cool clear, bold black and a radiant red. (Please note that the red glass beads will darken when burning and then return to their original colour when cool).

Logic HE
The latest in the Logic™ gas fires range, the Logic™ HE has a glass front and boasts the highest efficiency of all the Logic™ Fires at up to 89%.

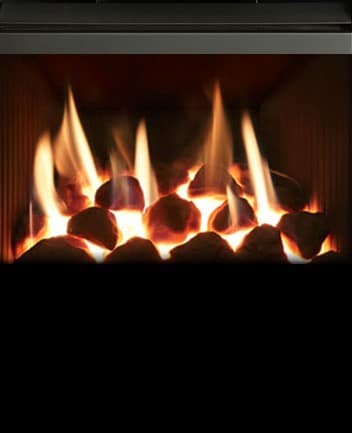

Logic HE (coals) gas inset fire

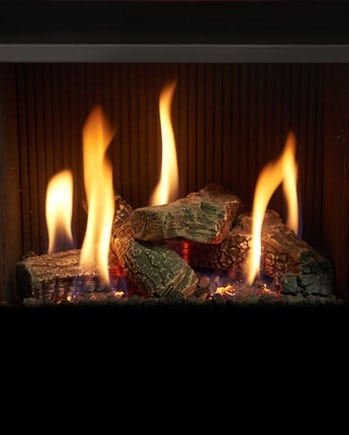

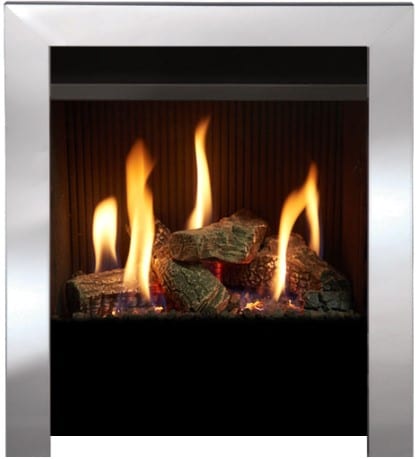

Logic HE (Logs) gas inset fire

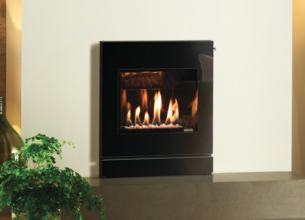

Logic HE (Stones) gas inset fire

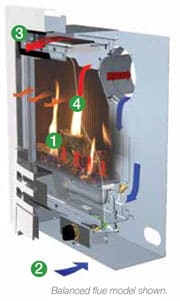

The HE offers a choice of either logs†, coal or white stone or upgradeable coloured glass bead∆ fuel effects (1).Gazco Logic HE Fire infogram

With both conventional and balanced flue models, the Logic™ HE is even suitable for homes without a chimney!* The Logic™ HE box draws cool room air into the bottom of the convection chamber (2)

The cool air is warmed as it passes over the hot surfaces of the chamber and the hot air is then emitted back into the room via the top convection slot (3).

Maximum heat is radiated into the room via the virtually invisible glass front (4).

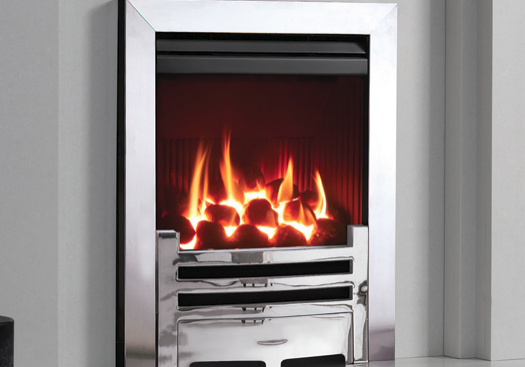

The Logic™ HE (balanced flue only) has been specifically designed with reduced depth to allow for easy installation into the internal skin of a traditional cavity wall. * Balanced flue models only. † Log effect available for slide control, conventional flue fires only.

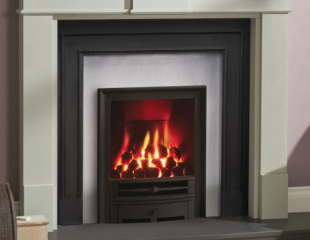

Logic Hotbox
Gazco Logic Hotbox gas fireSuitable for all chimney types, the Logic™ Hotbox is an open-fronted inset gas fire that provides a warm focal point without the additional heat emitted by the Logic™ Convector or Logic™ He.Logic Hotbox gas fire

This fire offers you the options of either coal or fuel beds (1) and the choice of a manual or remote control version.

The hotbox draws cool room air into the bottom of the appliance (2) and then emits radiant heat into the room (3) via the glow generated on the ceramic fuel bed. This provides convenient and comforting warmth whilst retaining all the ambience of a real open fire.



Choose your style



Logic™ Control Options

The complete Logic family of fires are available with your choice of three different control systems; Manual Control, new Slide Control** or for the ultimate luxury heating experience, a Remote Control to give convenient control from the comfort of your sofa.

Manual Control

logic-manualAn easy-to-use system that allows for ignition, extinguishment & full flame control all from a simple single control handle. To maintain the aesthetic appeal of your fire, the controls are discretely located behind the frame front at the bottom of the fire & can be accessed with ease.

Slide Control
logic-manualGazco’s new innovative slide system has a subtly designed, ergonomic lever that is situated to the top right-hand side of the fire’s frame for easy access. the new slide offers complete and convenient control over the fire, including ignition and extinguish along with flame height and corresponding heat levels, allowing you to achieve the warmth and ambience you desire with minimal bending. Slide Control Logic fires are available with a specific selection of frame styling options, please see table below for details.



Logic Key Features

Key Features

Logic Hotbox* Logic Convector* Logic HE
Efficiency 60% 68.5% CF: Up to 89%
BF: Up to 86%
Heat output Up to 4kW (input 6.7kW) Up to 4.60kW (input 6.7kW) CF: Up to 4.50kW (input 5.1kW)
BF: Up to 3.40kW (input 4.00kW)
Manual versions Yes Yes Yes
Slide control Yes Yes Yes
Remote control Yes Yes Yes
Fits into standard 410x560x250mm
(wxhxd) fireplace opening
Yes Yes  Yes
Optional remote control Yes Yes Yes
Fuel bed options Coal Coal Coal, White stone, Logs & Coloured Glass Beads
Convected heat  No  Yes Yes
Radiant heat Yes Yes Yes
Wide selection of frames Yes Yes Yes
Natural Gas or LPG Yes Yes Yes
Can be wall-mounted No No Yes
Variable flame colour No No Yes
Ambient open fire Yes Yes No
Glass-fronted high-efficiency No No Yes
ODS (Oxygen Depletion Sensor) Yes Yes Yes
Additional air vents required No No No
Conventional Flue Yes Yes Yes
Balanced Flue No No Yes
Energy Efficiency Class N/A N/A D



Logic Front Choices

Manual & Remote Control Fires

Logic Hotbox Logic Convector Logic HE (w/stones) Logic HE (coals)
Holyrood  Yes  Yes  No  Yes

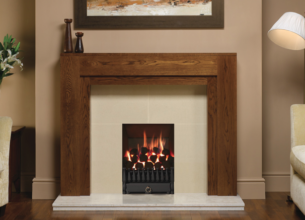

Spanish  Yes  Yes  No  Yes
Arts  Yes  Yes  Yes  Yes

Slide Control Fires

Logic Hotbox Logic Convector Logic HE (w/stones) Logic HE (coals)
Holyrood  Yes  Yes  No  Yes
Spanish  Yes  Yes  No  Yes
Arts  Yes  Yes  Yes  Yes



Logic Frame Choices

Manual & Remote Control Fires

Logic Hotbox Logic Convector Logic HE (w/stones) Logic HE (coals)
Holyrood  Yes  Yes  No  Yes
Spanish  Yes  Yes  No  Yes
Arts  Yes  Yes  Yes  Yes

Slide Control Fires

Logic Hotbox Logic Convector Logic HE (w/stones) Logic HE (coals)
Profil  No  No  No  No
Arts  Yes  Yes  Yes  Yes

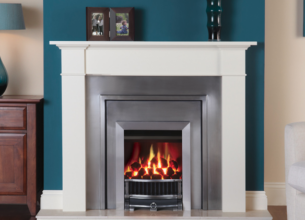

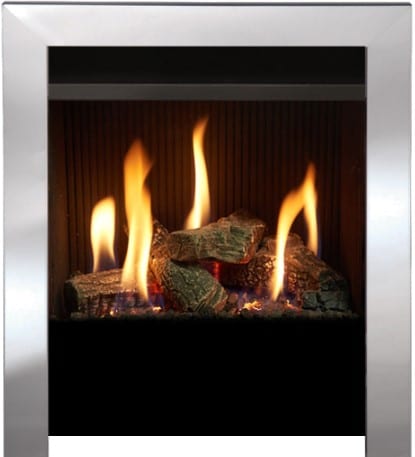

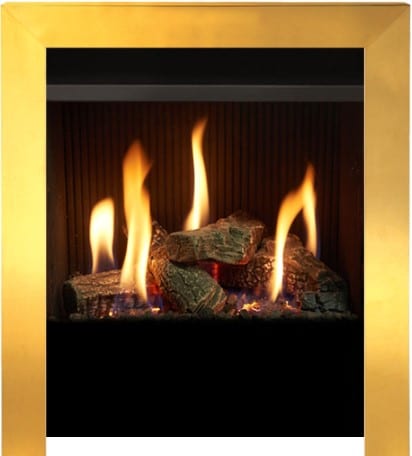

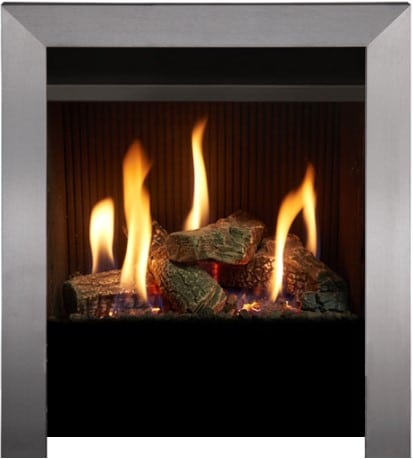

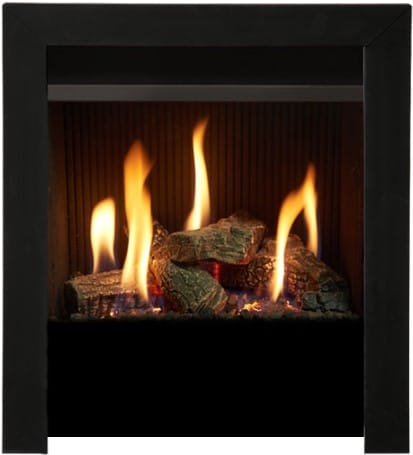

Box Profil  Yes  Yes  Yes  Yes



Logic Complete Choices

Manual & Remote Control Fires

Logic Hotbox Logic Convector Logic HE (w/stones) Logic HE (coals)

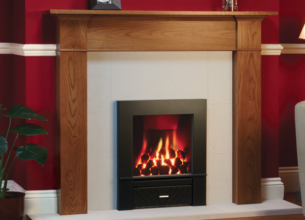

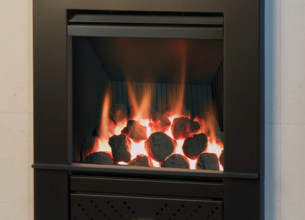

Dimension  Yes  Yes  Yes  Yes
Designio  Yes  Yes  Yes  Yes

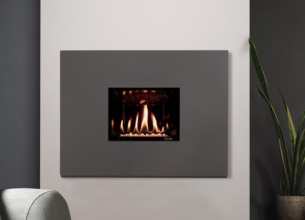

Steel  No  No  Yes  No

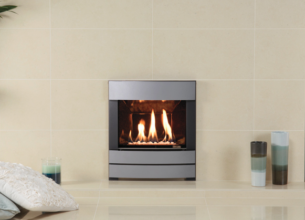

Progress  Yes  Yes  Yes  Yes

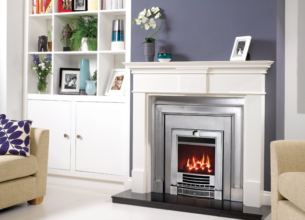

Winchester  Yes  Yes  Yes  Yes

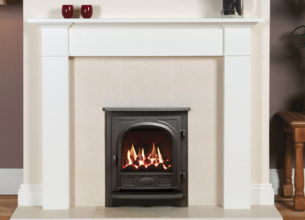

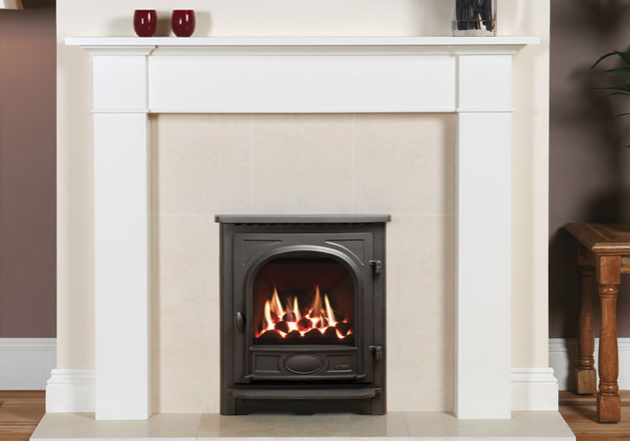

Stockton Inset  No  No  No  Yes

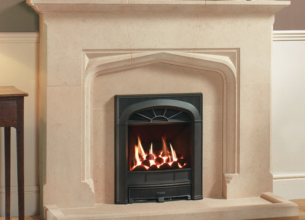

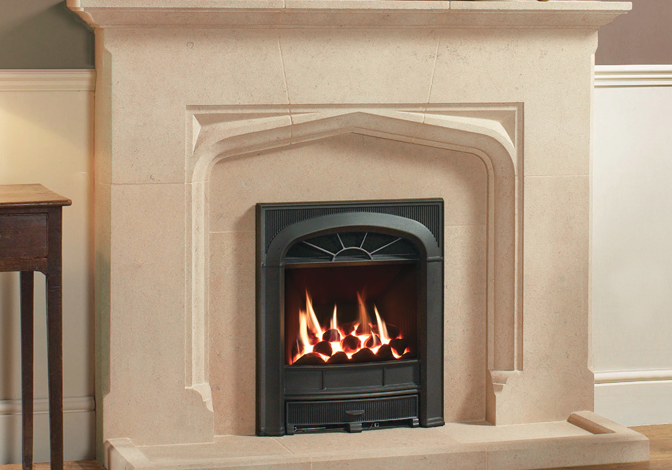

Richmond  No  Yes  No  Yes

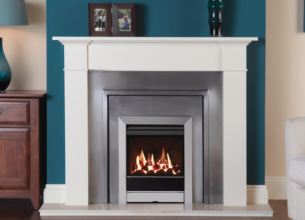

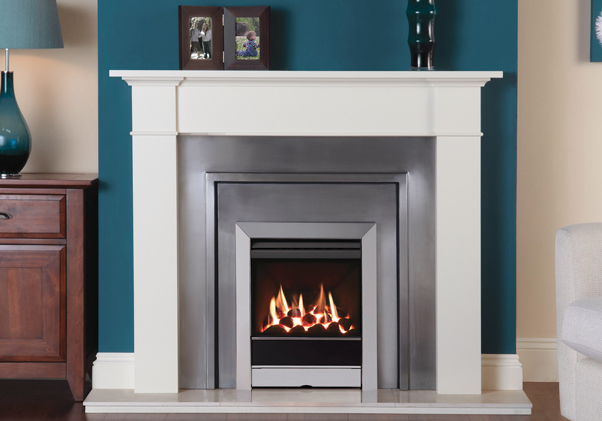

Tempo  No  No  Yes  Yes

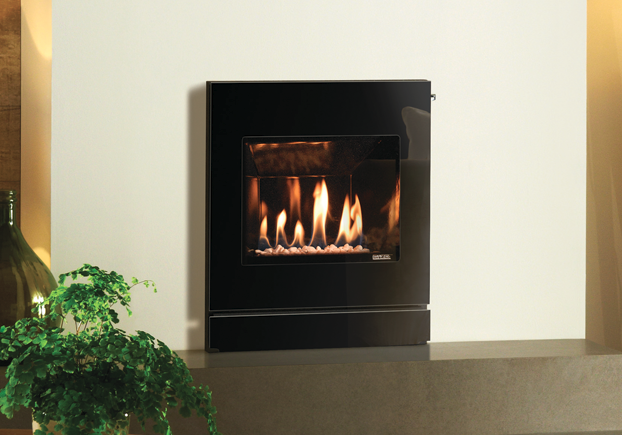

Designio2 Glass  No  No  Yes  Yes

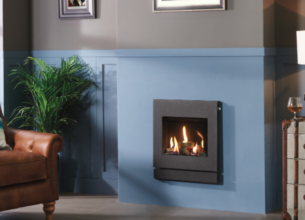

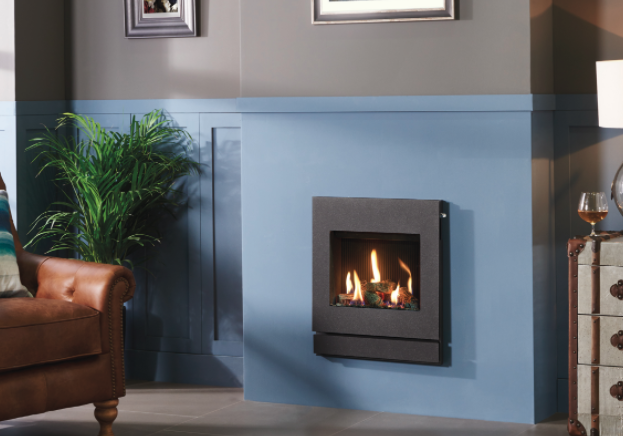

Designio2 Steel  No  No  Yes  Yes

Slide Control Fires

Logic Hotbox Logic Convector Logic HE (w/stones) Logic HE (coals)
Dimension  No  No  No  No
Designio  No  No  No  No
Steel  No  No  No  No
Progress  No  No  No  No
Winchester  Yes  Yes  Yes  Yes
Stockton Inset  No  No  No  No
Richmond  No  No  No  No
Tempo  No  No  Yes  Yes
Designio2 Glass  No  No  Yes  Yes
Designio2 Steel  No  No  Yes  Yes



Find Out More

If you would like to find out more about the Gazco Logic range or any other fire we have at Zigis please contact us today or call into one of our fire shops in Essex and Suffolk and talk to one of our friendly and expert sales team who will be happy to answer any questions you have about buying the right fire for you and your home. We have a large range of gas and electric fires together with electric and gas stoves.

You will also be able to choose from a wide selection of fireplaces and accessories. So whether you are looking for a contemporary or traditional design for your home we are sure you will find what you are looking for at Zigis.
