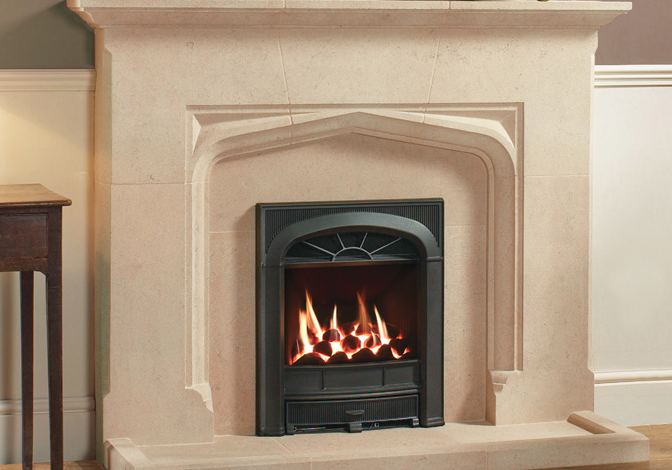

Gazco Logic Richmond Inset Gas Fire
Add period refinement to your fireplace with Gazco’s Richmond Cast Iron front.

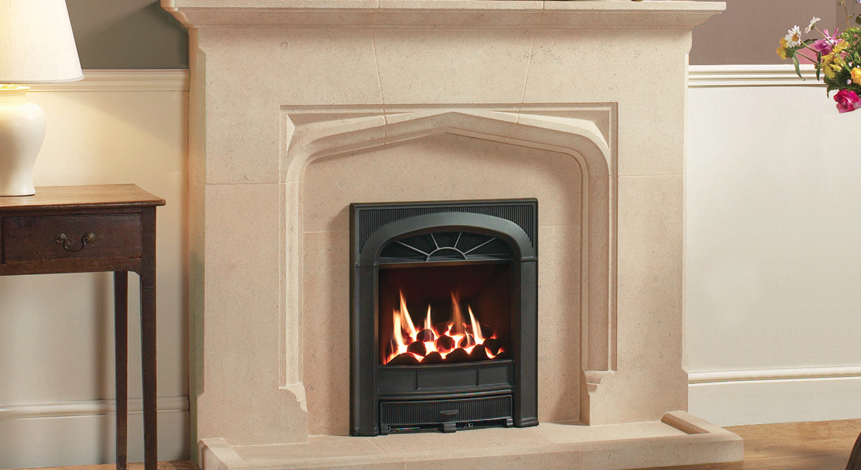

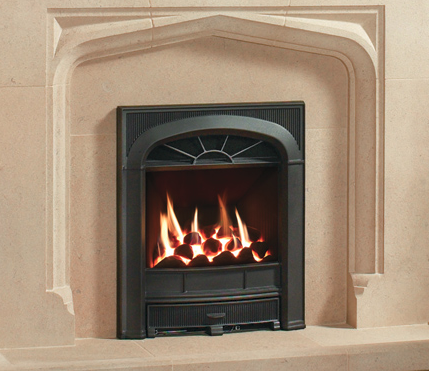

With its elegant design and finely detailed castings, the 16″ Richmond inset gas fire will add period refinement to any fireplace.
You can select from our wide selection of sizes, colours, control systems and fuel effects for your inset gas fire. The Richmond fire has the choice of coal, pebble or white stone fuel beds depending on your choice of model.
Choose Your Gas Fire

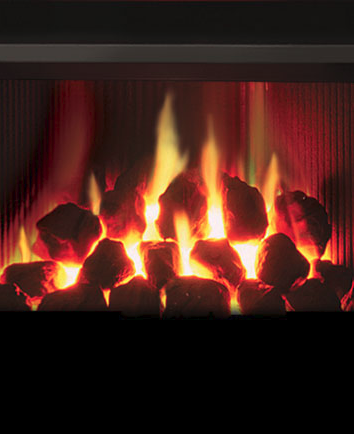

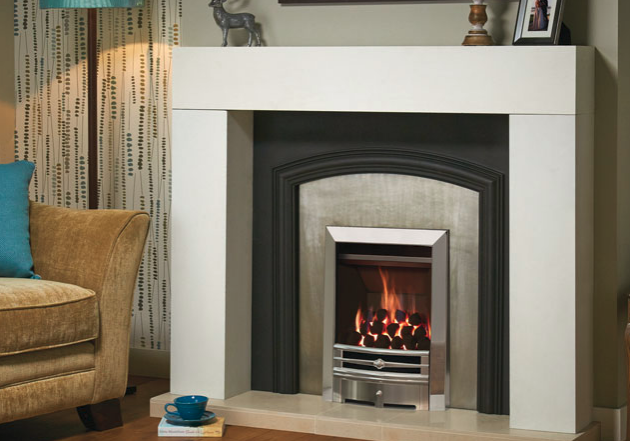

The Logic™ Convector is an efficient open-inset gas fire suitable for all chimney types. It incorporates a convection system that provides additional heat and efficiency to that of the Hotbox.
Available with coal or fuel beds (1) and the option of either manual or remote control versions.

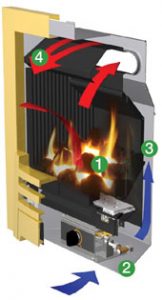

The convector box draws cool room air into the bottom of the convection chamber (2) the cool air is warmed as it passes over the hot surfaces of the chamber (3) and the hot air is then emitted back into the room via the top convection slot (4).
Upgradeable Glass Bead Fuel Effects
For those who want to make a real style statement, there is the option to upgrade the White Stone fuel bed on your fire to a choice of three stunning glass bead packs including cool clear, bold black and a radiant red. (Please note that the red glass beads will darken when burning and then return to their original colour when cool).

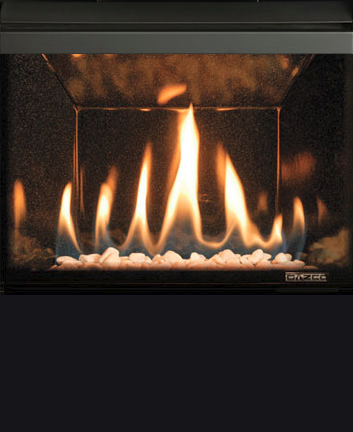

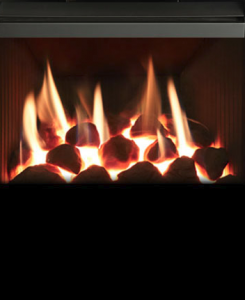

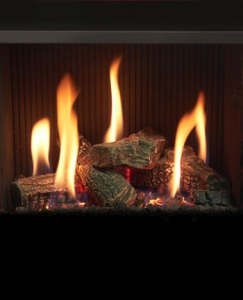

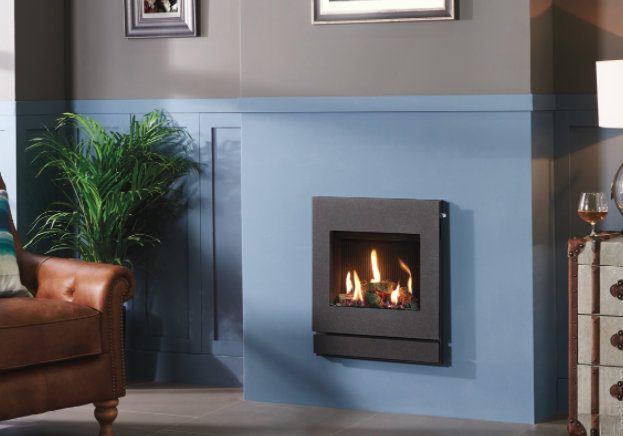

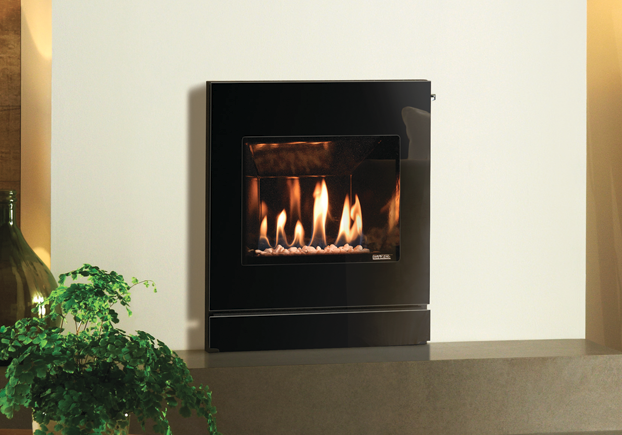

The HE offers a choice of either logs†, coal or white stone or upgradeable coloured glass bead∆ fuel effects (1).

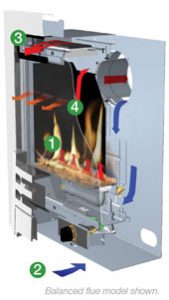

With both conventional and balanced flue models, the Logic™ HE is even suitable for homes without a chimney!* The Logic™ HE box draws cool room air into the bottom of the convection chamber (2)
The cool air is warmed as it passes over the hot surfaces of the chamber and the hot air is then emitted back into the room via the top convection slot (3).
Maximum heat is radiated into the room via the virtually invisible glass front (4).

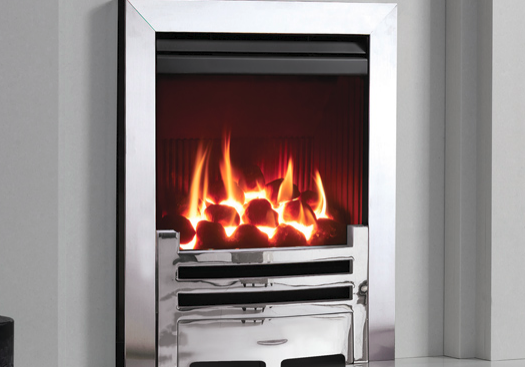

The Logic™ HE (balanced flue only) has been specifically designed with reduced depth to allow for easy installation into the internal skin of a traditional cavity wall. * Balanced flue models only. † Log effect available for slide control, conventional flue fires only.

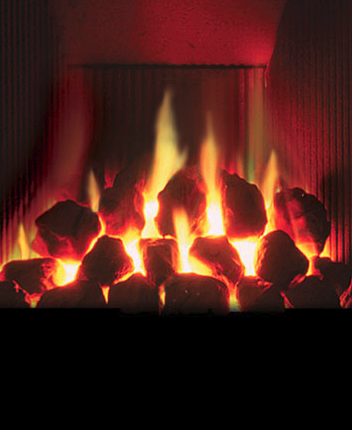

Suitable for all chimney types, the Logic™ Hotbox is an open-fronted inset gas fire that provides a warm focal point without the additional heat emitted by the Logic™ Convector or Logic™ He.
This fire offers you the options of either coal or fuel beds (1) and the choice of a manual or remote control version.

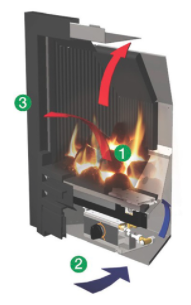

The hotbox draws cool room air into the bottom of the appliance (2) and then emits radiant heat into the room (3) via the glow generated on the ceramic fuel bed. This provides convenient and comforting warmth whilst retaining all the ambience of a real open fire.
Choose your style
Logic™ Control Options
The complete Logic family of fires are available with your choice of three different control systems; Manual Control, new Slide Control** or for the ultimate luxury heating experience, a Remote Control to give convenient control from the comfort of your sofa.
An easy to use system that allows for ignition, extinguish & full flame control all from a simple single control handle. To maintain the aesthetic appeal of your fire, the controls are discretely located behind the frame front at the bottom of the fire & can be accessed with ease.
Gazco’s new innovative slide system has a subtly designed, ergonomic lever that is situated to the top right-hand side of the fire’s frame for easy access. the new slide offers complete and convenient control over the fire, including ignition and extinguish along with flame height and corresponding heat levels, allowing you to achieve the warmth and ambience you desire with minimal bending. Slide Control Logic fires are available with a specific selection of frame styling options, please see table below for details.
Logic Key Features
| Logic Hotbox* | Logic Convector* | Logic HE | |
|---|---|---|---|
| Efficiency | 60% | 68.5% | CF: Up to 89% BF: Up to 86% |
| Heat output | Up to 4kW (input 6.7kW) | Up to 4.60kW (input 6.7kW) | CF: Up to 4.50kW (input 5.1kW) BF: Up to 3.40kW (input 4.00kW) |
| Manual versions | Yes | Yes | Yes |
| Slide control | Yes | Yes | Yes |
| Remote control | Yes | Yes | Yes |
| Fits into standard 410x560x250mm (wxhxd) fireplace opening |
Yes | Yes | Yes |
| Optional remote control | Yes | Yes | Yes |
| Fuel bed options | Coal | Coal | Coal, White stone, Logs & Coloured Glass Beads |
| Convected heat | No | Yes | Yes |
| Radiant heat | Yes | Yes | Yes |
| Wide selection of frames | Yes | Yes | Yes |
| Natural Gas or LPG | Yes | Yes | Yes |
| Can be wall mounted | No | No | Yes |
| Variable flame colour | No | No | Yes |
| Ambient open fire | Yes | Yes | No |
| Glass fronted high efficiency | No | No | Yes |
| ODS (Oxygen Depletion Sensor) | Yes | Yes | Yes |
| Additional air vent required | No | No | No |
| Conventional Flue | Yes | Yes | Yes |
| Balanced Flue | No | No | Yes |
| Energy Efficiency Class | N/A | N/A | D |
Logic Front Choices
| Logic Hotbox | Logic Convector | Logic HE (w/stones) | Logic HE (coals) | |
|---|---|---|---|---|
| Holyrood | Yes | Yes | No | Yes |
| Spanish | Yes | Yes | No | Yes |
| Arts | Yes | Yes | Yes | Yes |
| Logic Hotbox | Logic Convector | Logic HE (w/stones) | Logic HE (coals) | |
|---|---|---|---|---|
| Holyrood | Yes | Yes | No | Yes |
| Spanish | Yes | Yes | No | Yes |
| Arts | Yes | Yes | Yes | Yes |
Logic Frame Choices
| Logic Hotbox | Logic Convector | Logic HE (w/stones) | Logic HE (coals) | |
|---|---|---|---|---|
| Holyrood | Yes | Yes | No | Yes |
| Spanish | Yes | Yes | No | Yes |
| Arts | Yes | Yes | Yes | Yes |
| Logic Hotbox | Logic Convector | Logic HE (w/stones) | Logic HE (coals) | |
|---|---|---|---|---|
| Profil | No | No | No | No |
| Arts | Yes | Yes | Yes | Yes |

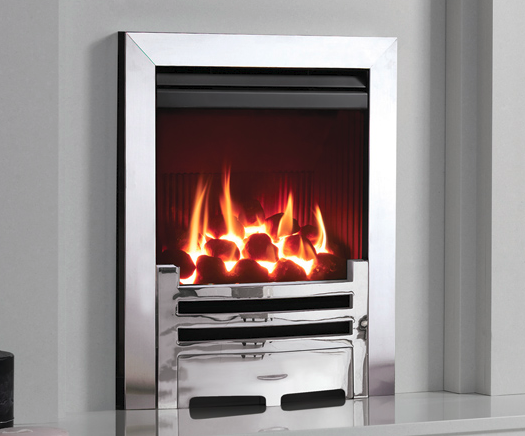

| Box Profil | Yes | Yes | Yes | Yes |
Logic Complete Choices
| Logic Hotbox | Logic Convector | Logic HE (w/stones) | Logic HE (coals) | |
|---|---|---|---|---|
| Dimension | Yes | Yes | Yes | Yes |
| Designio | Yes | Yes | Yes | Yes |
| Steel | No | No | Yes | No |
| Progress | Yes | Yes | Yes | Yes |
| Winchester | Yes | Yes | Yes | Yes |

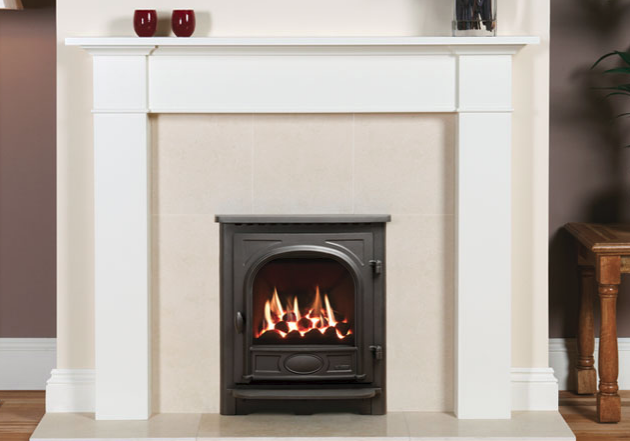

| Stockton Inset | No | No | No | Yes |
| Richmond | No | Yes | No | Yes |
| Tempo | No | No | Yes | Yes |
| Designio2 Glass | No | No | Yes | Yes |
| Designio2 Steel | No | No | Yes | Yes |
| Logic Hotbox | Logic Convector | Logic HE (w/stones) | Logic HE (coals) | |
|---|---|---|---|---|
| Dimension | No | No | No | No |
| Designio | No | No | No | No |
| Steel | No | No | No | No |
| Progress | No | No | No | No |
| Winchester | Yes | Yes | Yes | Yes |
| Stockton Inset | No | No | No | No |
| Richmond | No | No | No | No |
| Tempo | No | No | Yes | Yes |
| Designio2 Glass | No | No | Yes | Yes |
| Designio2 Steel | No | No | Yes | Yes |
