Trent HiLine HE Gas Fire
- Huge range of trims and fire fronts
- Control options: Manual Control Slide Control Remote Control
- Heat Output: High 4.6kW Low: 2.1kW
- Heat Input: High 6.9kW Low: 4.2kW
- Gas Type: Natural Gas or LPG (LPG reduces the heat output to 3.9kW)
Description

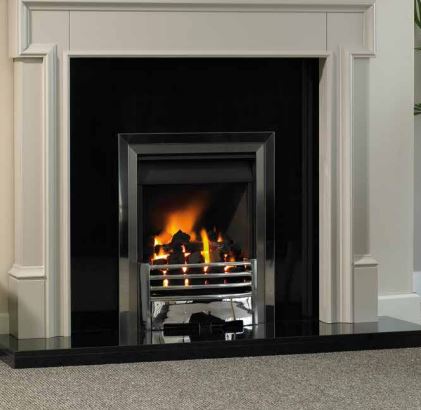

The 4.6 kW Trent HILINE HE is an Open Fronted Convector Gas Fire. Years of research and development have ensured that this is a super hot and realistic-looking fire. The huge range of trims and fire fronts that have been designed to compliment this fire are shown on pages 26-29 giving an almost endless range to choose from putting you in the driving seat when it comes to exactly how you want your fire to look.
Contemporary & Profile Fascias
The Contemporary and Profile Fascias are a further option for the HiLine range of fires. These fascias are one-piece and the colour options are as seen below. All of the fascias can be ordered as 3 3-sided versions (as seen) or as a 4-sided version to fit a 'Hole In The Wall' installation.
HiLine & Evoke Trim Options
There is a huge choice of trim options available for the HILINE and Evoke range of fires. Trent Fireplaces pride itself on giving you exactly what you are looking for and allowing you to custom-finish your fireplace to your desired look.
Not only can you choose exactly how you want your fire to look but if you want a change or to update your look simply clip on a new trim in another colour finish without the need to get an engineer out to alter the fire. Simply clip on the base trim with the supplied magnets and then add another DUO or OUTER trim of your choice.
Base Trims
These trims are fitted to the Trent HILINE range of Gas Fires. The base trim can be fitted on its own as seen or have an additional trim (Duo or Outer) added to it, see below.
The Base Trim comes in a choice of 5 colour finishes. The base trims are 55mm wide on the front face and 16mm deep.
Duo Trims
These trims are fitted on top of the Base Trim with magnets allowing easy removal if required. There is a choice of 5 colour options. The Duo trim is 30mm wide on the face and sits centrally over the base trim.
It is 4mm thick so sits flat on the base trim.
Outer Trims
These trims are fitted on top of the Base Trim with magnets allowing easy removal if required. There is a choice of 5 colour options.
The Outer trim is 35mm wide on the face and wraps around the outer edge of the base trim is 20mm deep.
HiLine Fire Front Options
There is also a huge choice of Fire Fronts available for the HiLine range of fires. Trent Fireplaces prides itself on giving you exactly what you are looking for and allowing you to custom-finish your fire to your desired look. Not only can you choose exactly how you want your fire to look but if you want to change it to update your look simply remove the existing fire front and replace it with another of your choice without the need to get an engineer out to alter the fire.
HiLine Gas Fire Control Options
The HiLine gas fire has three control mechanisms to suit customers' needs and requirements. Handheld remote control, optional ribbed interior slide switch control located on the side of the trim at the top and manual rotary control.
]
Chimney and Flue Options
Class 1 Flue A Class 1 chimney is usually identified by a 7” or greater diameter flue. The Existing chimney must be structurally sound.
Class 2 Flue A Class 2 flue is generally present in an older house where the existing chimney has been lined by a proprietary steel flue or a newer house with a steel flue built in. This chimney type is identified by a 5” diameter flue and a steel flue terminal.
A Pre-Cast flue is generally found in later properties (1960 onwards) that have a pre-cast concrete chimney system. This is identified by a rectangular box section flue and a terminal as illustrated.
Power Flue fire expels the flue gases directly outside the building through the use of an electronically driven fan unit mounted on the external wall. A clever pressure switch monitors the performance and automatically shuts off the fire in the unlikely event of operation failure.
Balanced Flue fire vents directly outside through a horizontal coaxial pipe (one pipe within a larger pipe). The outer pipe draws air in from the outside and the inner pipe expels combustion gases. No electricity supply is required for Balanced Flue fires.

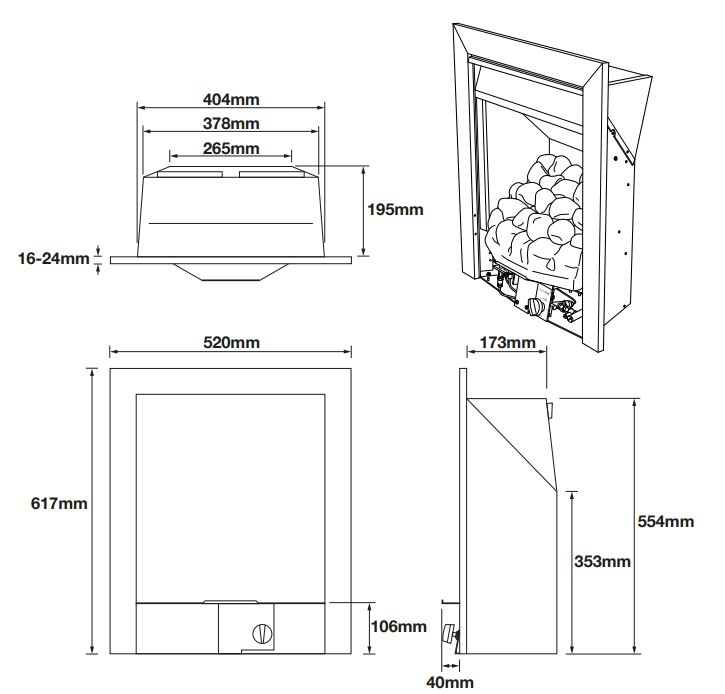

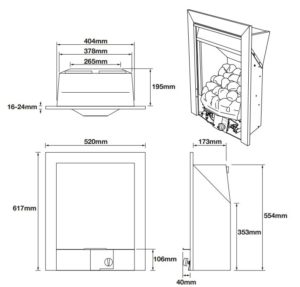

Trent HiLine HE Gas Fire Dimensions
- Controls Manual – Slide Control – Hand-Held Remote Control
- Heat Output High 4.6 kW Low 2.1 kW
- Heat Input High 6.9 kW Low 4.2 kW
- Gas Type Natural Gas – LPG * (Reduces to 3.9 kW heat output)
- Options: Low Lintel Version * (Reduces to 3.9 kW heat output)
- Ribbed Interior (see page 3)
- Pebble Effect Fuel Bed
- * Note: The LPG and Low Lintel fires are not convectors
